PE Battery Separator
PE+GM Battery Separator Envelope
follow us
Overview
Specifications
FAQ
Quick Details

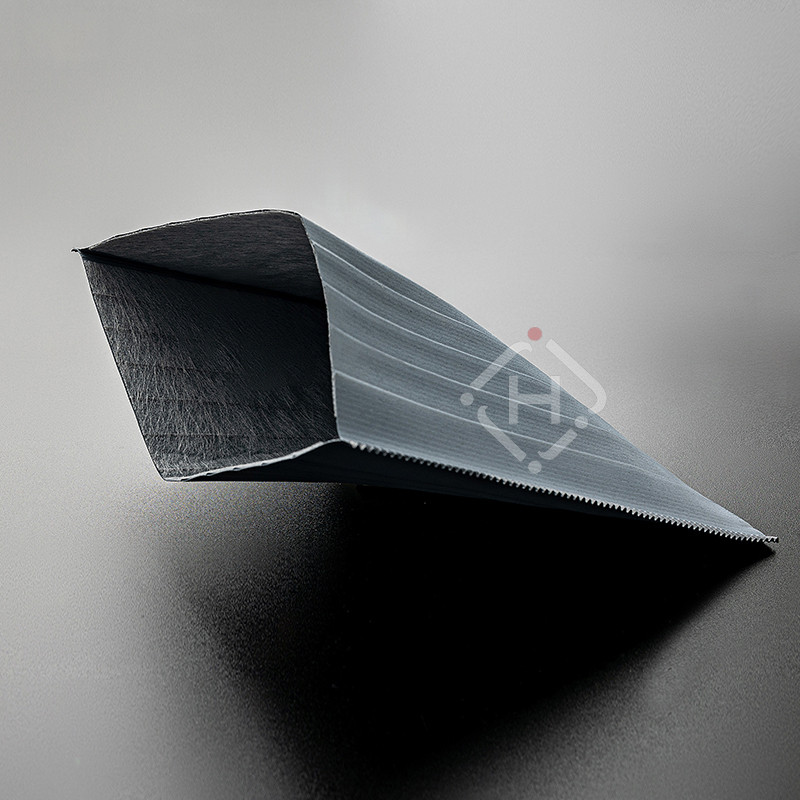

Motorcycle PE+GM battery separator
Place of Origin: China
Brand Name: JHTD
Model Number: PE+GM battery
separator envelope type
Material: PE and fiberglass mat
Width: 116-126, 150-170mm/Customized
PE Thickness: 0.8-1.2 mm
GM Thickness: 0.3-0.8 mm
Porosity: ≥55%
Moisture Content: ≤4.0%
Dimension Stability: ≤1.0%
Acid Weight Loss: ≤4.0%
Usage: Motorcycle battery
Customization: Available
Automotive PE+GM battery separator
Place of Origin: China
Brand Name: JHTD
Model Number: PE+GM battery
separator envelope type
Material: PE and fiberglass mat
Width: 200-500mm/Customized
PE Thickness: 0.6-0.9 mm
GM Thickness: 0.3-0.8 mm
Porosity: ≥55%
Moisture Content: ≤4.0%
Dimension Stability: ≤1.0%
Acid Weight Loss: ≤4.0%
Usage: Automotive battery
Customization: Available
Feature

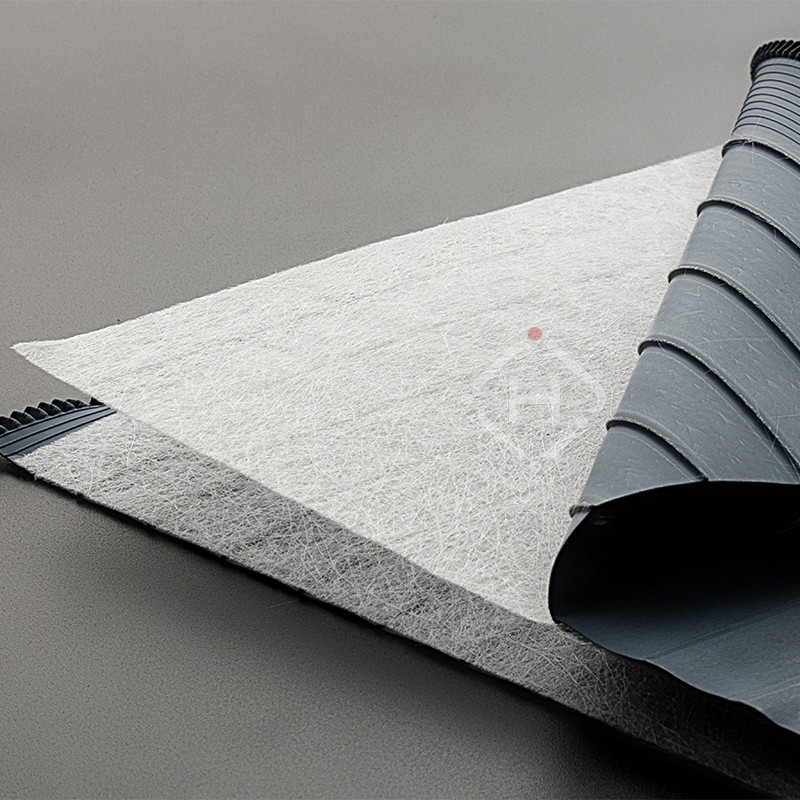

The product is offered either with glass tissue or with special cast ribs or with both. The thickness range varies from 0.3mm (only base web) to 4.5mm including rib and glass mat. Furthermore, the ribs come in both straight and sinusoidal shape. The cast rib process permits a high degree of product customization for specific battery applications such as automotive and industrial including gel batteries.
Item
Unit
Parameters
PE+GM 0.3
PE+GM 0.6
PE+GM 0.8
O/A
mm
Standard±0.1
Standard±0.1
Standard±0.1
Laminate Inset from Separator Edge
mm
8.0±2.0
8.0±2.0
8.0±2.0
Electrical Resistance
Ω.dm2
≤0.0015
≤0.0015
≤0.0015
Porosity
%
≥55
≥55
≥55
Moisture Content
%
≤4.0
≤4.0
≤4.0
Dimension Stability
%
≤1.0
≤1.0
≤1.0
Acid Weight Loss
%
≤4.0
≤4.0
≤4.0
Thickness, width and length and type are according to the customer ‘s request
Q1: Is there back mini rib?
It depends on customer’s requirement. For thickness more than 1.3 mm, there must be back mini rib.
Q2: What is the rib style of the separator?
We can communicate according to customer’s drawing or picture of separator.
