Vent Plug For Battery

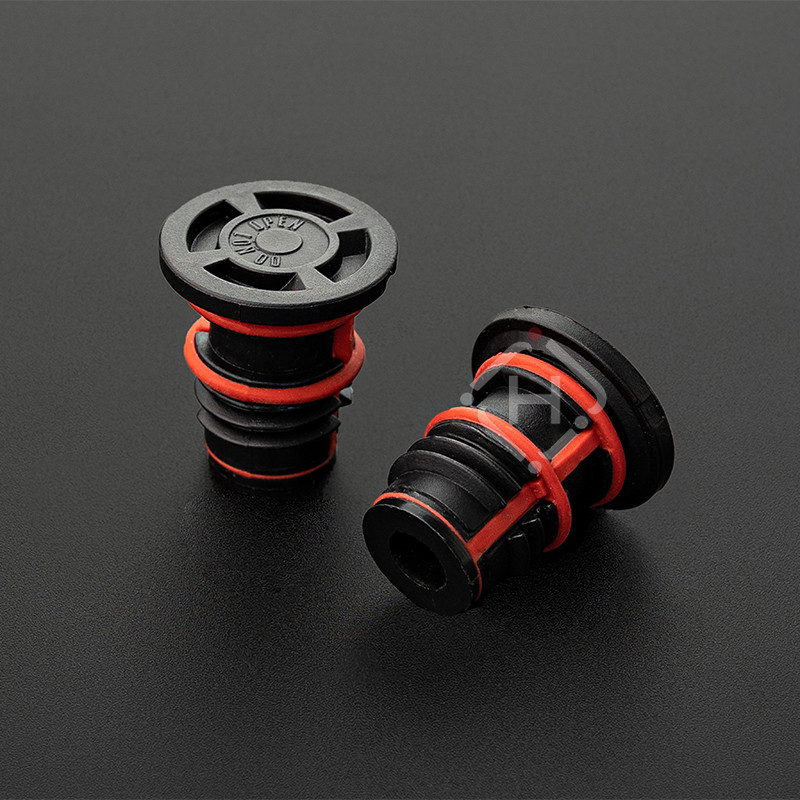

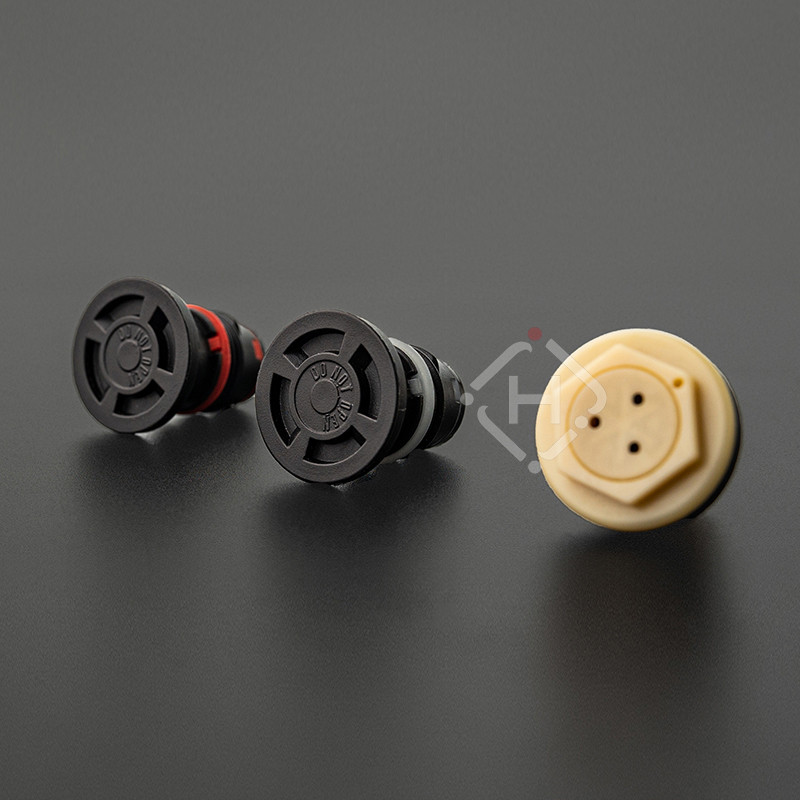

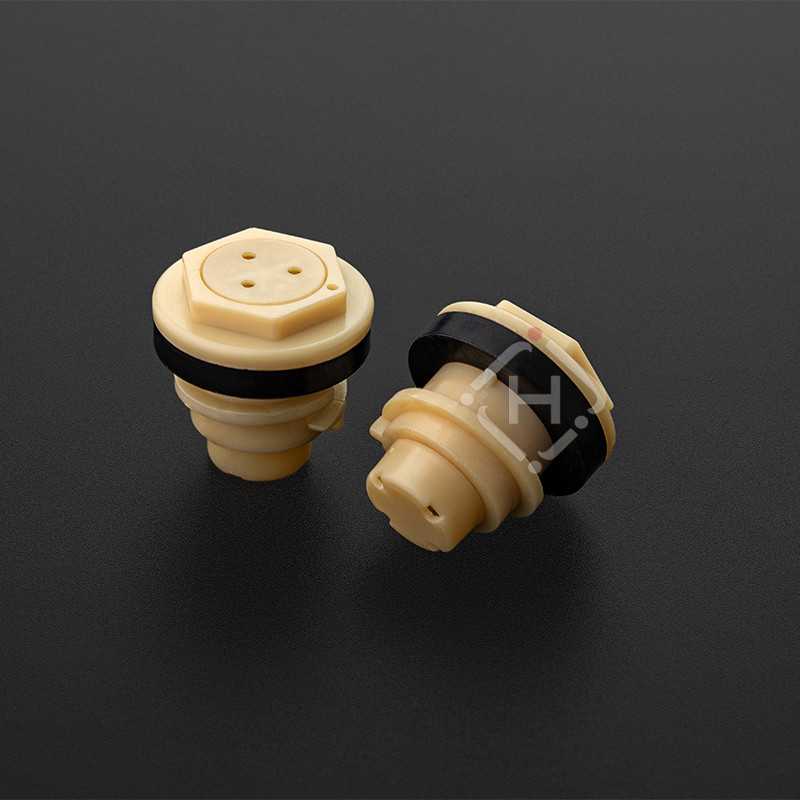

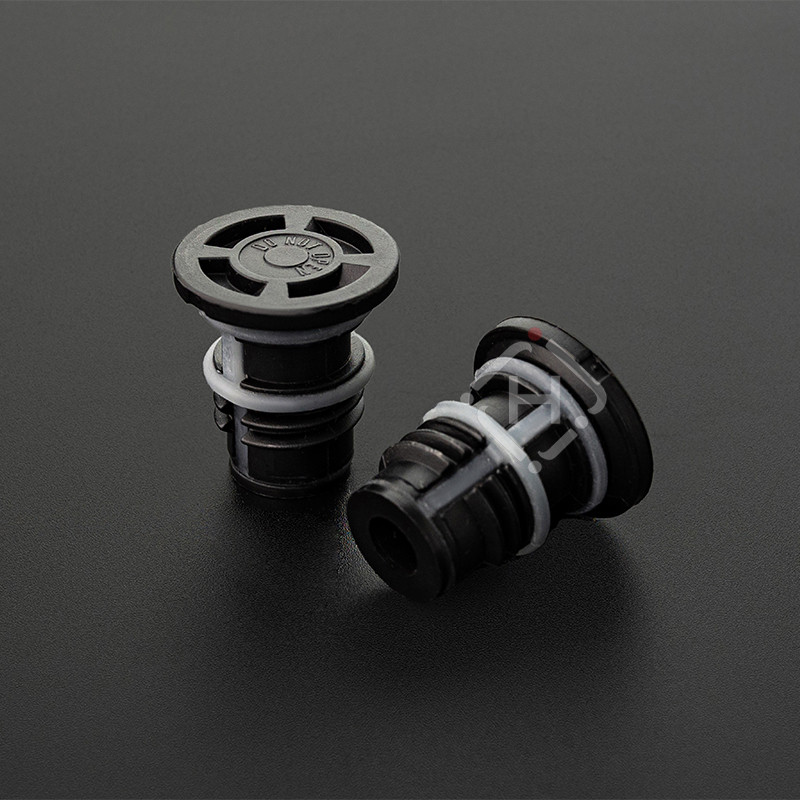

AGM Battery Safety Valve
follow us
Overview
Specifications
FAQ
Quick Details
Place of Origin: China
Brand Name: JHTD
Type: AGM battery safety valve, Safety Relief Valves, Adjustable Relief Valves, Pressure Reducing Control Valves, Pressure Regulators
Application: VRLA Battery
Color & Size: General / Customized
Temperature: -40℃-80℃
Feature
- High Stability
- High Acid Resistance
- Resistance to Flame
- High-Temperature Resistance
- It was designed to be Leak-proof and Hermetically Sealed
- Work more than 100,000times for Opening&Closing Pressure
- Tracking Quality from Raw Material to Finished Product
- Guarantee 100% Qualified before delivery
- Customized Design Depending On Your Demands
HD-1
Total height:24
Bonnet diameter:/
Push-in diameter:34
Valve cylinder diameter:23.9
Bayonet diameter:26.2
Push-in thickness:5
HD-2
Total height:27
Bonnet diameter:35.7
Push-in diameter:34
Valve cylinder diameter:23
Bayonet diameter:26.2
Push-in thickness:5
HD-3
Total height:31
Bonnet diameter:38
Push-in diameter:38
Valve cylinder diameter:23
Bayonet diameter:26
Push-in thickness:10
HD-4
Total height:25.3
Bonnet diameter:/
Push-in diameter:30
Valve cylinder diameter:23.5
Bayonet diameter:M22×2
Push-in thickness:8.5
HD-5
Total height:16.5
Bonnet diameter:12.5
Push-in diameter:/
Valve cylinder diameter:M8*1.2
Bayonet diameter:/
Push-in thickness:2
HD-6
Total height:34.5
Bonnet diameter:40
Push-in diameter:35
Valve cylinder diameter:20.2
Bayonet diameter:25
Push-in thickness:10
HD-7
Total height:34
Bonnet diameter:40
Push-in diameter:35
Valve cylinder diameter:20.2
Bayonet diameter:25
Push-in thickness:10
HD-8
Total height:34
Bonnet diameter:40
Push-in diameter:34.2
Valve cylinder diameter:M24×3
Bayonet diameter:/
Push-in thickness:6
HD-9
Total height:33.5
Bonnet diameter:33.4
Push-in diameter:33.4
Valve cylinder diameter:M23.3×3
Bayonet diameter:/
Push-in thickness:7
HD-10
Total height:36
Bonnet diameter:33
Push-in diameter:33
Valve cylinder diameter:20
Bayonet diameter:24.5
Push-in thickness:7
HD-11
Total height:25
Bonnet diameter:/
Push-in diameter:34.2
Valve cylinder diameter:20.3
Bayonet diameter:24
Push-in thickness:4.5
HD-12
Total height:27.5
Bonnet diameter:40
Push-in diameter:38
Valve cylinder diameter:22.5
Bayonet diameter:28.5
Push-in thickness:4.5
HD-13
Total height:41
Bonnet diameter:38
Push-in diameter:35
Valve cylinder diameter:20.2
Bayonet diameter:25.5
Push-in thickness:6
HD-14
Total height:42
Bonnet diameter:43
Push-in diameter:34
Valve cylinder diameter:20.6
Bayonet diameter:25
Push-in thickness:12
HD-15
Total height:47
Bonnet diameter:35
Push-in diameter:34
Valve cylinder diameter:20
Bayonet diameter:25
Push-in thickness:13
HD-16
Total height:40
Bonnet diameter:34
Push-in diameter:33
Valve cylinder diameter:20
Bayonet diameter:24.5
Push-in thickness:7
HD-17
Total height:30.5
Bonnet diameter:41
Push-in diameter:38
Valve cylinder diameter:24
Bayonet diameter:/
Push-in thickness:19.5
HD-18
Total height:24
Bonnet diameter:/
Push-in diameter:31.4
Valve cylinder diameter:20
Bayonet diameter:24
Push-in thickness:4.5
HD-19
Total height:21
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:5
HD-20
Total height:23
Bonnet diameter:28
Push-in diameter:/
Valve cylinder diameter:8.5
Bayonet diameter:11.6
Push-in thickness:13
HD-21
Total height:22.5
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:18
Bayonet diameter:26
Push-in thickness:6
HD-22
Total height:17
Bonnet diameter:22
Push-in diameter:/
Valve cylinder diameter:M18×2.5
Bayonet diameter:/
Push-in thickness:5.2
HD-23
Total height:22.5
Bonnet diameter:/
Push-in diameter:34.2
Valve cylinder diameter:20.3
Bayonet diameter:24
Push-in thickness:4.5
HD-24
Total height:22
Bonnet diameter:/
Push-in diameter:34
Valve cylinder diameter:M30×2.5
Bayonet diameter:/
Push-in thickness:6.5
HD-25
Total height:29
Bonnet diameter:28.5
Push-in diameter:28.5
Valve cylinder diameter:M20×2.5
Bayonet diameter:/
Push-in thickness:6
HD-26
Total height:29
Bonnet diameter:28.5
Push-in diameter:28.5
Valve cylinder diameter:M20×2.5
Bayonet diameter:/
Push-in thickness:5
HD-27
Total height:26
Bonnet diameter:37
Push-in diameter:/
Valve cylinder diameter:23.5
Bayonet diameter:28.5
Push-in thickness:14.5
HD-28
Total height:22.5
Bonnet diameter:18
Push-in diameter:/
Valve cylinder diameter:M12×2
Bayonet diameter:/
Push-in thickness:10.4
HD-29
Total height:20.8
Bonnet diameter:18
Push-in diameter:/
Valve cylinder diameter:M12×2
Bayonet diameter:/
Push-in thickness:8.8
HD-30
Total height:30
Bonnet diameter:38.5
Push-in diameter:36
Valve cylinder diameter:23.5
Bayonet diameter:29.2
Push-in thickness:6
HD-31
Total height:30.5
Bonnet diameter:41
Push-in diameter:38
Valve cylinder diameter:24
Bayonet diameter:29
Push-in thickness:12.5
HD-32
Total height:39
Bonnet diameter:40
Push-in diameter:/
Valve cylinder diameter:M23×2
Bayonet diameter:/
Push-in thickness:/
HD-33
Total height:31
Bonnet diameter:38
Push-in diameter:36
Valve cylinder diameter:23.5
Bayonet diameter:29.5
Push-in thickness:8
HD-34
Total height:31
Bonnet diameter:40
Push-in diameter:33.5
Valve cylinder diameter:20.3
Bayonet diameter:24.5
Push-in thickness:10.2
HD-35
Total height:29
Bonnet diameter:33.5
Push-in diameter:31
Valve cylinder diameter:M24×2
Bayonet diameter:/
Push-in thickness:5
HD-36
Total height:25
Bonnet diameter:33.5
Push-in diameter:21
Valve cylinder diameter:M24×1.5
Bayonet diameter:/
Push-in thickness:5
HD-37
Total height:27
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:5
HD-38
Total height:27
Bonnet diameter:/
Push-in diameter:25
Valve cylinder diameter:M16×2.5
Bayonet diameter:/
Push-in thickness:5
HD-39
Total height:113.3
Bonnet diameter:42
Push-in diameter:/
Valve cylinder diameter:24
Bayonet diameter:29
Push-in thickness:32
HD-40
Total height:175
Bonnet diameter:48
Push-in diameter:/
Valve cylinder diameter:24.5
Bayonet diameter:29
Push-in thickness:35
HD-41
Total height:135
Bonnet diameter:39
Push-in diameter:/
Valve cylinder diameter:24
Bayonet diameter:29
Push-in thickness:34
HD-42
Total height:56
Bonnet diameter:/
Push-in diameter:33
Valve cylinder diameter:/
Bayonet diameter:18
Push-in thickness:/
HD-43
Total height:39
Bonnet diameter:/
Push-in diameter:38
Valve cylinder diameter:24
Bayonet diameter:30
Push-in thickness:/
HD-44
Total height:39
Bonnet diameter:/
Push-in diameter:35
Valve cylinder diameter:20
Bayonet diameter:26
Push-in thickness:/
HD-45
Total height:19
Bonnet diameter:/
Push-in diameter:38
Valve cylinder diameter:/
Bayonet diameter:29.8
Push-in thickness:/
HD-46
Total height:24
Bonnet diameter:/
Push-in diameter:20
Valve cylinder diameter:/
Bayonet diameter:/
Push-in thickness:/
HD-47
Total height:20
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:M18×2.5
Bayonet diameter:/
Push-in thickness:/
HD-48
Total height:18.5
Bonnet diameter:/
Push-in diameter:24.5
Valve cylinder diameter:M17×2.5
Bayonet diameter:/
Push-in thickness:/
HD-49
Total height:20
Bonnet diameter:26
Push-in diameter:M18×2.5
Valve cylinder diameter:/
Bayonet diameter:/
Push-in thickness:/
HD-50
Total height:25
Bonnet diameter:/
Push-in diameter:/
Valve cylinder diameter:24
Bayonet diameter:30
Push-in thickness:/
HD-51
Total height:22
Bonnet diameter:/
Push-in diameter:20.5
Valve cylinder diameter:M24×1.5
Bayonet diameter:/
Push-in thickness:5.5
HD-52
Total height:32
Bonnet diameter:26.2
Push-in diameter:26.3
Valve cylinder diameter:M21×3
Bayonet diameter:/
Push-in thickness:7
HD-53
Total height:44.5
Bonnet diameter:/
Push-in diameter:41.3
Valve cylinder diameter:/
Bayonet diameter:36.3
Push-in thickness:/
HD-54
Total height:45/57/74
Bonnet diameter:/
Push-in diameter:/
Valve cylinder diameter:/
Bayonet diameter:/
Push-in thickness:/
HD-55
Total height:52.5
Bonnet diameter:43.5
Push-in diameter:41
Valve cylinder diameter:21
Bayonet diameter:29
Push-in thickness:/
HD-56
Total height:33
Bonnet diameter:40
Push-in diameter:34.5
Valve cylinder diameter:20
Bayonet diameter:24
Push-in thickness:5
HD-57
Total height:35
Bonnet diameter:/
Push-in diameter:35.8
Valve cylinder diameter:23×1.8
Bayonet diameter:/
Push-in thickness:3
HD-58
Total height:17.8
Bonnet diameter:/
Push-in diameter:35
Valve cylinder diameter:20
Bayonet diameter:24
Push-in thickness:6.4
HD-59
Total height:33.5
Bonnet diameter:33
Push-in diameter:/
Valve cylinder diameter:18.5
Bayonet diameter:19.5
Push-in thickness:7
HD-60
Total height:31.5
Bonnet diameter:42.1
Push-in diameter:/
Valve cylinder diameter:33.8
Bayonet diameter:37.5
Push-in thickness:36.5
HD-61
Total height:135
Bonnet diameter:39
Push-in diameter:41.2
Valve cylinder diameter:24
Bayonet diameter:28.5
Push-in thickness:2
HD-62
Total height:38
Bonnet diameter:/
Push-in diameter:30
Valve cylinder diameter:25
Bayonet diameter:/
Push-in thickness:/
HD-63
Total height:29.7
Bonnet diameter:/
Push-in diameter:37.1
Valve cylinder diameter:23.5
Bayonet diameter:28.5
Push-in thickness:12.3
HD-64
Total height:30.2
Bonnet diameter:/
Push-in diameter:40
Valve cylinder diameter:M24
Bayonet diameter:/
Push-in thickness:7
HD-65
Total height:32
Bonnet diameter:39.5
Push-in diameter:35.8
Valve cylinder diameter:23.5
Bayonet diameter:30
Push-in thickness:3
HD-66
Total height:20.5
Bonnet diameter:/
Push-in diameter:36.5
Valve cylinder diameter:23.4
Bayonet diameter:29.7
Push-in thickness:6
HD-67
Total height:24
Bonnet diameter:/
Push-in diameter:31.5
Valve cylinder diameter:23
Bayonet diameter:26.5
Push-in thickness:/
HD-68
Total height:36.3
Bonnet diameter:39.6
Push-in diameter:36.5
Valve cylinder diameter:23.5
Bayonet diameter:29.5
Push-in thickness:17.1
HD-69
Total height:39
Bonnet diameter:38
Push-in diameter:38
Valve cylinder diameter:23
Bayonet diameter:26
Push-in thickness:10
HD-70
Total height:56.5
Bonnet diameter:47.4
Push-in diameter:47.6
Valve cylinder diameter:24
Bayonet diameter:28
Push-in thickness:5
HD-71
Total height:34
Bonnet diameter:40
Push-in diameter:35
Valve cylinder diameter:20.2
Bayonet diameter:25
Push-in thickness:10
HD-72
Total height:114
Bonnet diameter:/
Push-in diameter:/
Valve cylinder diameter:M29×4
Bayonet diameter:/
Push-in thickness:/
HD-73
Total height:22.4
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:5
HD-74
Total height:17
Bonnet diameter:/
Push-in diameter:22
Valve cylinder diameter:M18×2.5
Bayonet diameter:/
Push-in thickness:5.2
HD-75
Total height:30
Bonnet diameter:/
Push-in diameter:33.5
Valve cylinder diameter:M22×3
Bayonet diameter:/
Push-in thickness:7.1
HD-76
Total height:26
Bonnet diameter:37
Push-in diameter:/
Valve cylinder diameter:23.5
Bayonet diameter:28.5
Push-in thickness:14.5
HD-77
Total height:20
Bonnet diameter:/
Push-in diameter:35
Valve cylinder diameter:24
Bayonet diameter:29
Push-in thickness:10
HD-78
Total height:30.5
Bonnet diameter:41
Push-in diameter:38
Valve cylinder diameter:24
Bayonet diameter:28.5
Push-in thickness:19.5
HD-79
Total height:23.7
Bonnet diameter:33
Push-in diameter:48
Valve cylinder diameter:M30×3.5
Bayonet diameter:/
Push-in thickness:3
HD-80
Total height:27.8
Bonnet diameter:/
Push-in diameter25
Valve cylinder diameter:M18×2.5
Top sealing diameter:ɸ22.1/20.3
Bottom sealing diameter:ɸ19.24/19.05
Push-in thickness:2.5
HD-81
Total height:25
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:M18×2.5
Bayonet diameter:/
Push-in thickness:2
HD-82
Total height:28
Bonnet diameter:/
Push-in diameter:26
Push-in thickness:6
HD-83
Total height:32
Bonnet diameter:/
Push-in diameter:34.8
Valve cylinder diameter:M28×3.5
Bayonet diameter:/
Push-in thickness:2
HD-84
Total height:28
Bonnet diameter:/
Push-in diameter:36
Valve cylinder diameter:22.5
Bayonet diameter:29
Push-in thickness:14.7
HD-85
Total height:40
Bonnet diameter:/
Push-in diameter:38
Valve cylinder diameter:24
Bayonet diameter:29.8
Push-in thickness:3
HD-86
Total height:34.5
Bonnet diameter:35.7
Push-in diameter:34
Valve cylinder diameter:23
Bayonet diameter:26.2
Push-in thickness:5
HD-87
Total height:37
Bonnet diameter:/
Push-in diameter:37.5
Valve cylinder diameter:22
Bayonet diameter:29
Push-in thickness:3
HD-88
Total height:41
Bonnet diameter:38
Push-in diameter:35
Valve cylinder diameter:20.2
Bayonet diameter:25.5
Push-in thickness:6
HD-89
Total height:36.5
Bonnet diameter:37
Push-in diameter:40
Valve cylinder diameter:23.8
Bayonet diameter:30
Push-in thickness:2.5
HD-90
Total height:21
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:5
HD-91
Total height:72
Bonnet diameter:/
Push-in diameter:44
Valve cylinder diameter:/
Bayonet diameter:29.3
Push-in thickness:13
HD-92（HD-306）
Total height:74.75
Bonnet diameter:/
Push-in diameter:41
Valve cylinder diameter:/
Bayonet diameter:36
Push-in thickness:15.3
HD-93
Total height:20.5
Bonnet diameter:/
Push-in diameter:36.5
Valve cylinder diameter:23.4
Bayonet diameter:29.7
Push-in thickness:6
HD-94
Total height:21.7
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:17
Bayonet diameter:20.89
Push-in thickness:2.2
HD-95
Total height:36
Bonnet diameter:41.5
Push-in diameter:37
Valve cylinder diameter:24.2
Bayonet diameter:29.6
Push-in thickness:12.7
HD-96
Total height:21
Bonnet diameter:/
Push-in diameter:33.1
Valve cylinder diameter:M30*2.5
Bayonet diameter:/
Push-in thickness:5.5
HD-97
Total height:22.4
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:2.1
HD-98
Total height:24
Bonnet diameter:/
Plastic housing tap diameter:ɸ25.8
Plastic housing middle diameter:ɸ20
Plastic housing bottom diameter:ɸ18
Valve cylinder diameter:M18*2.5
Top sealing diameter:ɸ25.8
Bottom sealing diameter:ɸ21
Anti-reverse diameter:ɸ26.4
Push-in thickness:4
HD-99
Total height:39.42
Bonnet diameter:38
Push-in diameter:38
Valve cylinder diameter:23
Bayonet diameter:26
Push-in thickness:10
HD-100
Total height:74.75
Bonnet diameter:/
Push-in diameter:41
Valve cylinder diameter:/
Bayonet diameter:36
Push-in thickness:15.3
HD-300
Total height:25
Bonnet diameter:/
Push-in diameter:34.2
Valve cylinder diameter:20.3
Bayonet diameter:24
Push-in thickness:4.5
HD-301
Total height:26.2
Bonnet diameter:/
Plastic housing tap diameter:ɸ25.8
Plastic housing middle diameter:ɸ19
Plastic housing bottom diameter:ɸ18
Valve cylinder diameter:M18*2.5
Top sealing diameter:ɸ26.3
Bottom sealing diameter:ɸ20
Push-in thickness:5.1
HD-302
Total height:37.9
Bonnet diameter:39.6
Push-in diameter:39.6
Valve cylinder diameter:23
Bayonet diameter:29
Push-in thickness:3.4
HD-303
Total height:22.4
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:2.5
HD-304
Total height:74.75
Bonnet diameter:/
Push-in diameter:41
Valve cylinder diameter:/
Bayonet diameter:36
Push-in thickness:15.3
HD-305
Total height:110/84
Bonnet diameter:/
Push-in diameter:34.5
Valve cylinder diameter:M28
Bayonet diameter:/
Push-in thickness:/
HD-307
Total height:38
Bonnet diameter:33.5
Push-in diameter:33
Valve cylinder diameter:20
Bayonet diameter:24.5
Push-in thickness:7
HD-308
Total height:40.8
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:14
Bayonet diameter:/
Push-in thickness:2.95
HD-309
Total height:27
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:6
HD-310
Total height:34
Bonnet diameter:40
Push-in diameter:34.2
Valve cylinder diameter:M24*3
Bayonet diameter:/
Push-in thickness:6
HD-311
Total height:20
Bonnet diameter:/
Push-in diameter:27
Valve cylinder diameter:18
Bayonet diameter:20.4
Push-in thickness:5.5
HD-312
Total height:20.5
Bonnet diameter:29
Push-in diameter:29
Valve cylinder diameter:M22*2.5
Bayonet diameter:/
Push-in thickness:3.5
HD-313
Total height:27.55
Bonnet diameter:/
Push-in diameter:25
Valve cylinder diameter:M18*2.5
Top sealing diameter:ɸ19.9
Bottom sealing diameter:ɸ19
Push-in thickness:2.5
HD-314
Total height:21
Bonnet diameter:/
Push-in diameter:24
Valve cylinder diameter:18
Bayonet diameter:21
Push-in thickness:5
HD-315
Total height:41.5
Bonnet diameter:39.6
Push-in diameter:39.6
Valve cylinder diameter:23
Bayonet diameter:29.3
Push-in thickness:14.6
HD-316
Total height:19
Bonnet diameter:/
Push-in diameter:38
Valve cylinder diameter:/
Bayonet diameter:29.8
Push-in thickness:/
HD-317
Total height:20.2
Bonnet diameter:/
Push-in diameter:26
Valve cylinder diameter:M18*2
Bayonet diameter:/
Push-in thickness:2.5
HD-318
Total height:34
Bonnet diameter:/
Push-in diameter:23.6
Valve cylinder diameter:15
Top sealing diameter:ɸ23.6
Middle sealing diameter:ɸ20.2
Bottom sealing diameter:ɸ16.7
Push-in thickness:15.3
HD-319
Total height:74.75
Bonnet diameter:/
Push-in diameter:41
Valve cylinder diameter:/
Bayonet diameter:36
Push-in thickness:15.3
Q1: Will the AGM battery safety valves leak the electrolyte and air from the valve?
Reply: No, the valve has a special design to solve the problem.
Q2: Could I design the opening&closing pressure by ourselves
Reply: Yes
Q3: Could we design the size？
Reply: Yes
Q4: May I have a free sample?
Reply: Yes, our existing items could be tested by you
Need Any Help
Leave your contacts and our engineers will help you to find the solution you are looking for.
