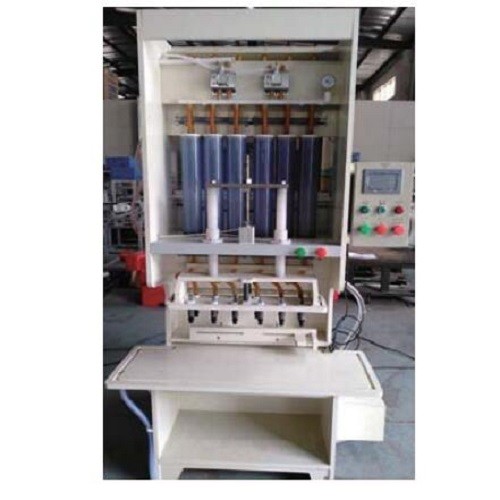

Automatic Acid Vacuum Filler

This machine is applicable for filling small capacity lead-acid batteries or e-bike battery, such as from 4Ah to 24Ah. And big capacity and mid capacity lead-acid batteries, such as from 24Ah to 400Ah etc..
Inquiry Now
Automatic Acid Vacuum Filler Add To Cart

follow us

  • Overview

  • Specifications

  • FAQ

  • Product Features


    - The machine adopts PLC control and touch interface, is easy to use and works steady, good repeatability.

    - Precision Manufacturing, high degree of accuracy.

    - Acidproof, alkali proof, long-life performance.

    - It was fixed quantity by measuring cup and vacuum filling.

    - Using acid pump quantitative on the principle of self-priming, fixed quantity fast and accurate.

    - Multi-tube synchronous & digital adjustment.

    - Digital Settings filling capacity.



    Function


    - Automatic and manual work mode.

    - The users can set filling time and vacuum time and adjust filling capacity freely.

    - The users can set up various time parameter.




  • Technical Parameter


    Power supply: 220V/50Hz˗

    Air supply: 0.4~0.6Mpa˗

    Vacuum: -0.06~-0.08MPa

    Acid filling accuracy: ≤±0.3%

    Accuracy of each tube: ≤±0.3%

    Speed: 120pcs/h(12V12Ah)



    Specifications


    Model

      Max mL per each

    Filling Mode

    Size (mm)

    Sphere of Application

    W

    D

    H

      100mL×12

      100mL



    Measuring cup +

    Vacuum

      1000

      850

      1900

      12V/2.5~10Ah

      100mL×16

      1400

      850

      2235

      16V/2.5~10Ah

      200mL×12

      200mL

      1000

      850

      1900

      12V/4.5~20Ah

      200mL×16

      1400

      850

      2235

      16V/4.5~20Ah

      250mL×12

      250mL

      1000

      850

      1900

      12V/5~24Ah

      250mL×16

      1400

      850

      2235

      16V/5~24Ah

      300mL×12

      300mL

      1000

      850

      1900

      12V/7~30Ah

      300mL×16

      1400

      850

      2235

      16V/7~30Ah

      500mL×12

      300mL

      1000

      850

      1900

      12V/20~50Ah

      1000mL×6

      1000mL

    Measuring cup +

    Vacuum

      1200

      800

      2100

      30~100 Ah

      2000mL×6

      2000mL

      800

      2300

      45~200 Ah

      2500mL×6

      2500mL

      800

      2300

      50~250 Ah

      3000mL×6

      3000mL

      1000

      2400

      60~300 Ah

      4000mL×6

      4000mL

      1100

      2450

      70~400 Ah
