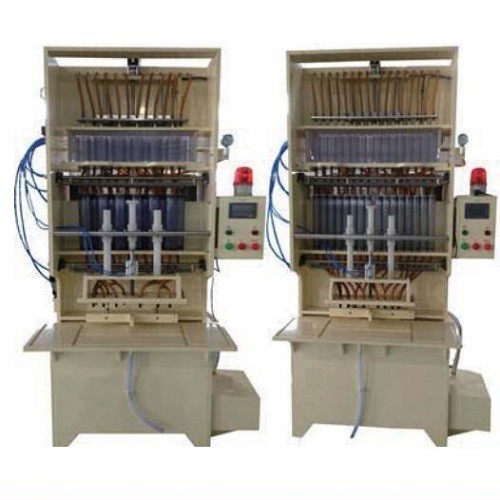

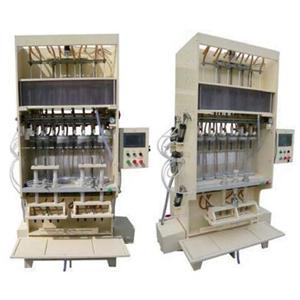

Lead Acid Battery Acid Gel Filler

Micom Control Gel Vacuum Filler

This machine is applicable for gel filling for small capacity & medium capacity & big capacity gel batteries.

Product features

- The machine adopts PLC control and touch interface, is easy to use and works steady, good repeatability.
- Precision manufacturing, high degree of accuracy.
- Acidproof, alkali proof, long-life performance.
- It was fixed quantity by measuring cup and vacuum filling.
- Using acid pump quantitative on the principle of self-priming, fixed quantity fast and accurate.
- Multi-tube synchronous & digital adjustment.
- Digital settings filling capacity.
- Using double quantitative cup, measuring acid and gel respectively.
- The machine adopts the dynamic and static mixing technology, mix well and fast.

Function

- Automatic and manual work mode.
- The users can set filling time and vacuum time and adjust filling capacity freely.
- The users can set up various time parameter.
- Setting mix proportion of acid & gel freely, it need 10s only.

Technical Parameter

Power supply: 220V/50Hz;

Air supply: 0.4~0.6Mpa;

Vacuum: -0.06~-0.08MPa;

Acid filling accuracy: ≤±0.5%；

Accuracy of each tube: ≤±0.5%；

Speed：120pcs/h (12V/12AH)

Specification

Model	Max mL per each	Filling Mode	Size (mm)			Sphere of Battery (AH)
Model	Max mL per each	Filling Mode	W	D	H	Sphere of Battery (AH)
100mL×12	30~100mL	Double quantitative cup & Vacuum	1200	1100	2200	4~10
200mL×12	40~200mL		1300	1100	2410	4.5~20
250mL×12	45~250mL		1300	1100	2410	5~24
500mL×12	100~500mL		1300	1100	2410	12~50
1000mL×6	200~1000mL		1600	1300	2410	20~100
1500mL×6	300~1500mL		1600	1300	2410	36~150
2000mL×6	400~2000mL		1600	1300	2410	40~200
2500mL×6	500~2500mL		1600	1300	2410	50~250

More model is not listed
