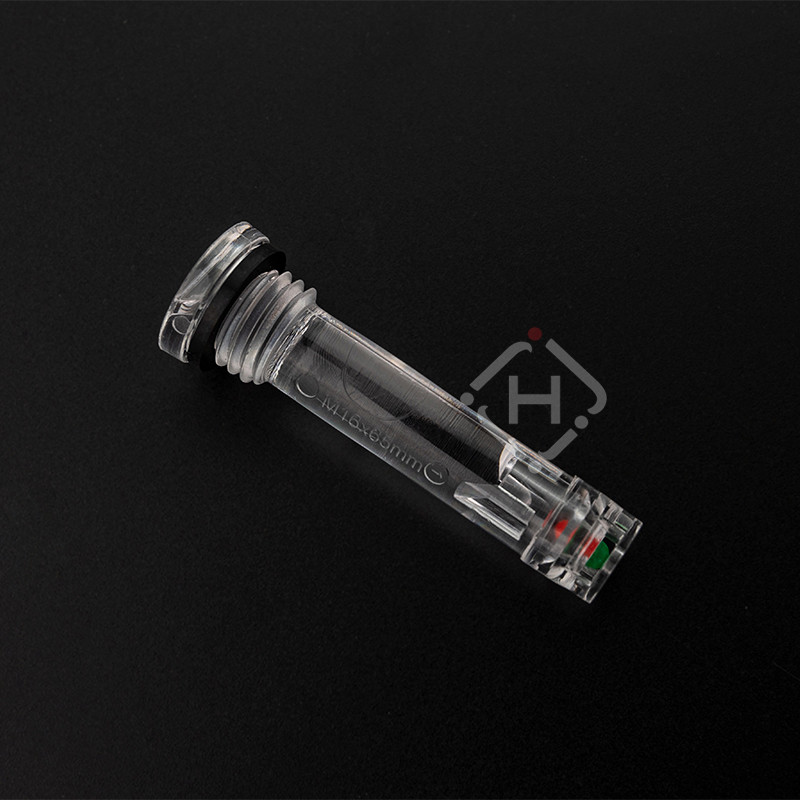

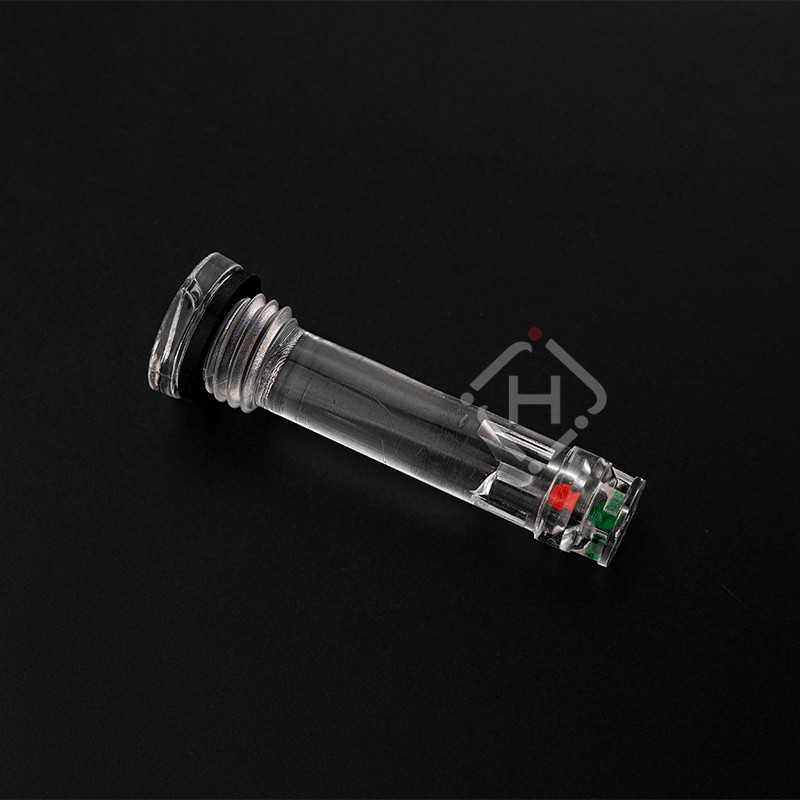

Battery Magic Eye
follow us
Overview
Specifications
FAQ
Feature
1.The battery magic eye has the characteristics of high display precision, clear display, convenient installation, acid resistance, cold resistance, leakage resistance and so on.
2.The battery magic eye model and specification can meet the domestic and foreign standard battery container installation demand;Quality can reach the battery plastic container industry standards and national standards.
3.Our company has high efficiency precision equipment, automatic assembly equipment and perfect testing equipment;All products are 100% full inspection, to ensure that each product used by customers are qualified products.
High Precision
Acid Resistance
Excellent Light Transmittance
High/Low Temperature Resistance
Easy Installation
Anti-Leakage
Impact Resistance
Plastic package screw series - K3
Product name
Top diameter D
Top thickness h
Gasket thickness b
Screw diameter M
screw pitch P
Length L（mm）
Description
K3-A1
Φ20 mm
4.0 mm
2.0 mm
M16
2.0 mm
38/ 40/ 42/ 45/ 48
50/ 52.5/ 55/ 58
60/ 62.5/ 65/ 68/ 70
Double balls
Straight color rendering bar
K3-A2
Φ20 mm
4.0 mm
2.0 mm
M15
1.5 mm
K3-B1
Φ23 mm
3.0 mm
2.0 mm
M16
2.0 mm
K3-B2
Φ23 mm
3.0 mm
2.0 mm
M15
1.5 mm
K3-C1
Φ24 mm
3.0 mm
1.0 mm
M18
2.5 mm
K3-D1
Φ20 mm
4.0 mm
2.0 mm
M16
2.0 mm
40/ 45/ 47.5
50/ 52.5/ 55/ 57.5
60/ 62.5/ 65/ 68
70/ 75
Single ball
Cone color rendering bar
K3-D2
Φ20 mm
4.0 mm
2.0 mm
M15
1.5 mm
K3-E1
Φ23 mm
3.0 mm
2.0 mm
M16
2.0 mm
K3-E2
Φ23 mm
3.0 mm
2.0 mm
M15
1.5 mm
Fully transparent all-in-one serious - K2
Screw can be matched with M16 (metric screw) or M15 (inch screw) screw hole respectively. The installation part is available in two ways, "buckle" and "level buckle", to meet the different needs of users.
Product name
Top diameter D
Top thickness h
Gasket thickness b
Screw diameter M
screw pitch P
Length L（mm）
Description
K2-A1
Φ20 mm
4.0 mm
2.0 mm
M16
2.0 mm
38/ 40/ 45/ 47
50/ 52.5/ 55/ 57.5
60/ 62/ 65/ 70
Buckle installation
Double balls
Straight color rendering bar
K2-A2
Φ20 mm
4.0 mm
2.0 mm
M15
1.5 mm
K2-A3
Φ23 mm
3.0 mm
2.0 mm
M16
2.0 mm
K2-A4
Φ23 mm
3.0 mm
2.0 mm
M15
1.5 mm
K2-B1
Φ20 mm
4.0 mm
2.0 mm
M16
2.0 mm
38/ 40/ 45/ 47
50/ 52.5/ 55/ 57.5
60/ 62/ 65/ 70
Level buckle
Double balls
Straight color rendering bar
K2-B2
Φ20 mm
4.0 mm
2.0 mm
M15
1.5 mm
K2-B3
Φ23 mm
3.0 mm
2.0 mm
M16
2.0 mm
K2-B4
Φ23 mm
3.0 mm
2.0 mm
M15
1.5 mm
Product name
Top diameter D
Top thickness h
Seal diameter M
Seal length l
------
Length L
（mm）
Description
K2-C1
Φ22.9 mm
2.0 mm
Φ20.7 mm
15.5 mm
-------
45/ 50/ 55/ 60/ 65
With O ring single ball
K2-D1
Φ22.9 mm
2.0 mm
Φ20.7 mm
15.5mm
-------
45/ 50/ 55/ 60/ 65
With O ring single ball
Q1: How about the Light Transmittance?
The optical part is made of optical grade materials such as Bayer of Germany and GE of the United States, which are more transparent than glass. Easy to check the status of battery.
Q2: How about the function of magic eye?
it was designed by engineers with more than 15 years experience in the automotive battery manufacturing field, we can better understand the needs of customers
