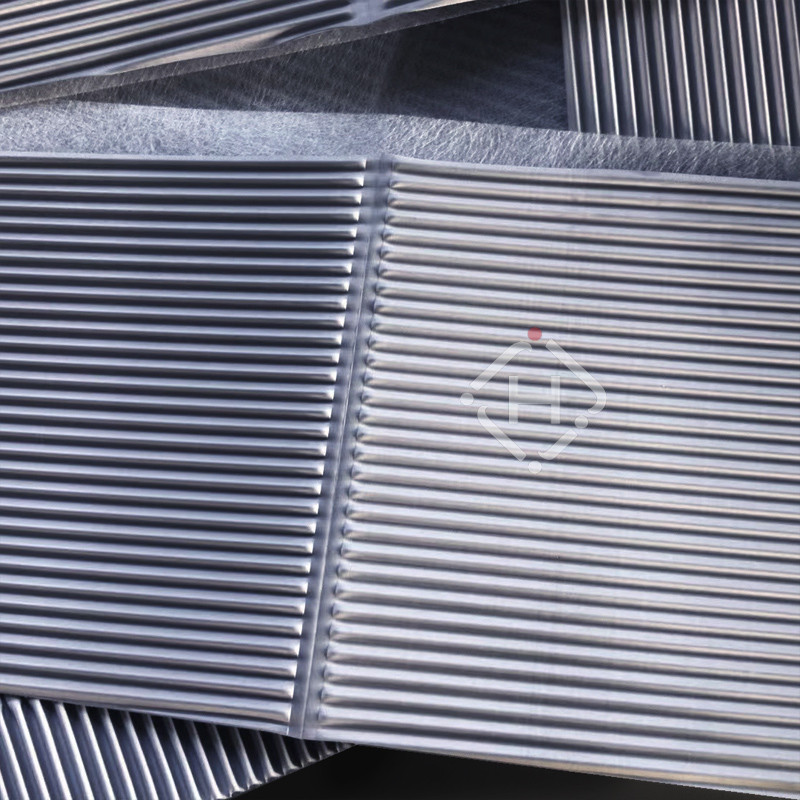

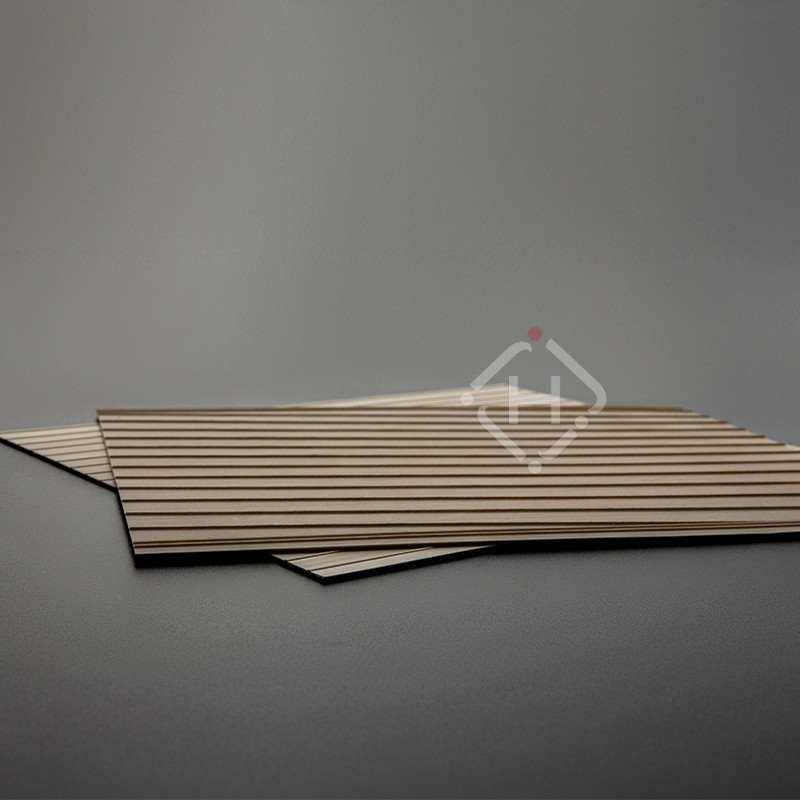

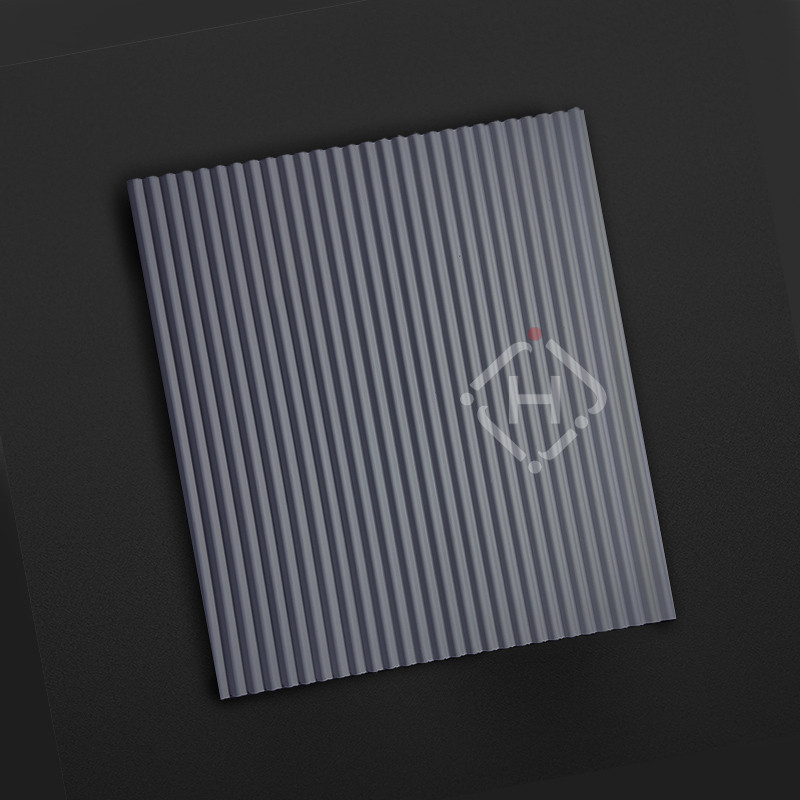

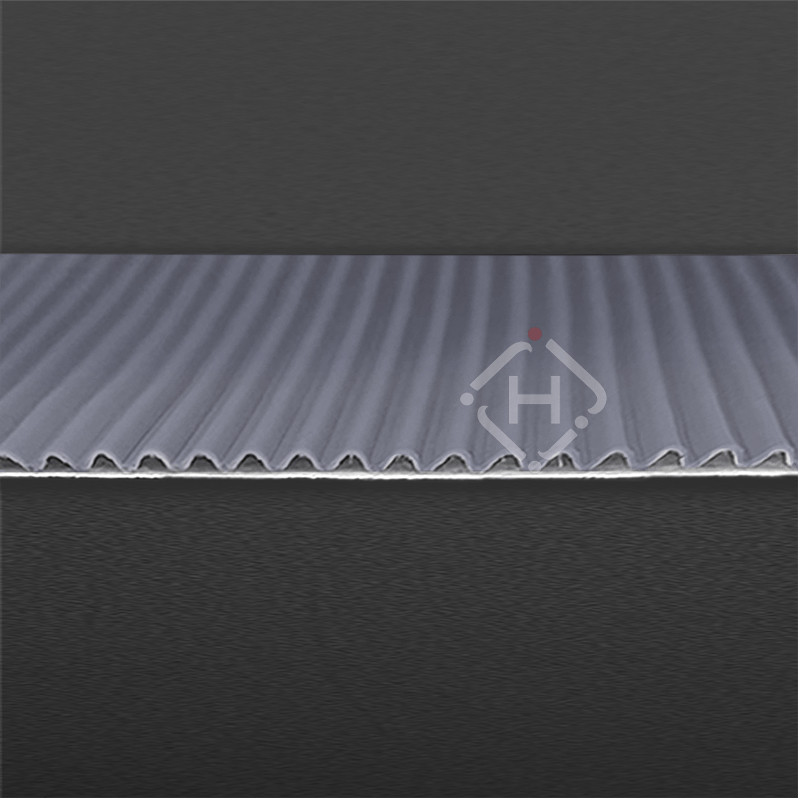

PVC SiO2 Battery Separator

PVC Battery Separator

PVC SiO2 Battery Separator

As the separator of the sealed valve-regulated gel battery, it plays an important role in the structure of the battery, and it plays a key role in improving the cycle life of the battery. The battery separator has the function of isolating the positive and negative electrodes inside the battery, and can avoid the short circuit between the positive and negative electrodes inside the battery.
Inquiry Now
PVC SiO2 Battery Separator Add To Cart

follow us

  • Overview

  • Specifications

  • FAQ

  • As the separator of the sealed valve-regulated gel battery, it plays an important role in the structure of the battery, and it plays a key role in improving the cycle life of the battery. The battery separator has the function of isolating the positive and negative electrodes inside the battery, and can avoid the short circuit between the positive and negative electrodes inside the battery. At the same time, the separator must be able to allow conductive ions to pass through. The high-rate discharge capacity of the battery has an important influence on the terminal voltage level, and the stability of the separator directly affects the battery life. For the electrolyte alone, it is necessary for the separator to have enough space and pores to conduct ions through. Therefore, the separator is called the third pole of the battery, and it has become an important means for developing new batteries or improving existing batteries.


    PVC-silica separators are also called wet-process PVC separators, which are mainly used in valve-controlled sealed lead-acid gel batteries. PVC-silica separator has higher porosity than sintered PVC separator, more ideal pore size distribution, better puncture resistance, better compressive strength and stronger toughness than polyethylene PE separator It has better oxidation resistance and chemical stability.


    Feature


    The PVC SiO2 separator that we produced has a richer pore structure, which improves the porosity of the separator, thereby effectively reducing the resistance of the separator and increasing the battery capacity.


    The PVC SiO2 separator has a porosity greater than 78%, the maximum pore diameter is less than 10 microns, the wetting speed to the electrolyte is within 2 seconds, and the resistance is only 0.0003Ω.dm2, which is one-tenth of that of ordinary separators.


    The PVC SiO2 separator has excellent flame-retardant properties and good toughness, is not easy to be damaged during packaging, transportation and assembly of the battery, and can be processed into a bag-type separator. The PVC battery separator also has the advantages of not being easy to absorb moisture and having a long storage shelf life.



  • Items

    standard value

    Actual test value

    Moisture(%)

    ≤1.5

    1.5

    Substrate thickness(mm)

    ≥0.45

    0.55

    Maximum pore size(um)

    ≤25

    8

    Containing porosity(%)

    ≥70

    84

    Resistance(Ω.dm2)

    ≤0.003

    0.0003

    Wettability(s)

    ≤5

    3.8

    Tensile Strength(MPa)


    2.75

    Acid absorption(g/g)


    3.2

    Impurity content

    Fe(%)

    ≤0.005

    0.0042

    Cl(%)

    0.003

    0.00078

    Mn(%)

    ≤0.0002

    Qualified

    Cu(%)

    ≤0.0005

    Qualified

    Ni(%)

    ≤0.0005

    Qualified

    Cd(%)

    ≤0.0002

    Qualified
